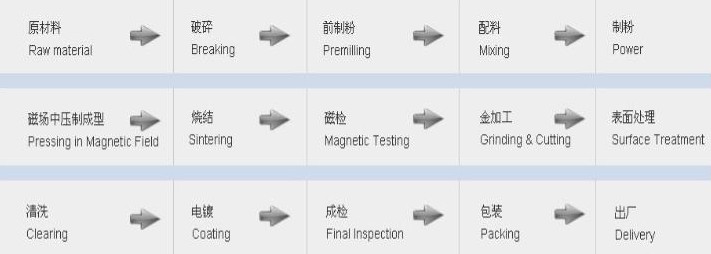

Production Chart for NdFeB magnet

,

PRODUCTION CHART FOR NDFEB MAGNET
牌号	剩磁		矫顽力		内禀矫顽力		最大磁能积		温度
Material	Remanence Br		Coercivity Hcb		Intrinsic Coercivity Hcj		Max.Energy Product		Max.Working Temp.
Code
TYPE	MT	(KGs)	kA/m	(KOe)	KA/m	(KOe)	KJ/m3	(MGOe)	°C(L/D=0.7)
N30	1090-1140	10.9-11.4	≥796	≥10	≥955	≥12	223-263	28-31	80
N33	1140-1170	11.4-11.7	≥836	≥10.5	≥955	≥12	247-287	31-33	80
N35	1170-1220	11.7-12.2	≥868	≥10.9	≥955	≥12.0	263-287	33-36	80
N38	1220-1260	12.2-12.6	≥899	≥11.3	≥955	≥12.0	287-310	36-39	80
N40	1260-1390	12.6-12.9	≥923	≥11.6	≥955	≥12.0	302-326	38-41	80
N42	1390-1330	12.9-13.3	≥923	≥11.6	≥955	≥12.0	318-342	40-43	80
N45	1330-1380	13.3-13.8	≥876	≥11.0	≥955	≥12.0	342-366	43-46	80
N48	1380-1420	13.8-14.2	≥876	≥11.0	≥955	≥12.0	366-390	46-49	80
N50	, 1390-1460	13.9-14.6	≥836	≥10.5	≥875	≥11.0	374-406	47-51	80
N52	1420-1470	14.2-14.7	≥836	≥10.5	≥875	≥11.0	390-422	49-53	80
N33M	1140-1170	11.4-11.7	≥835	≥10.5	≥1114	≥14.0	247-271	31-34	100
N35M	1170-1220	11.7-12.2	≥868	≥10.9	≥1114	≥14.0	263-287	33-36	100
N38M	1220-1260	12.2-12.6	≥899	≥11.3	≥1114	≥14.0	263-287	33-36	100
N40M	1260-1290	12.6-12.9	≥923	≥11.6	≥1114	≥14.0	302-326	38-41	100
N42M	1290-1330	12.9-13.3	≥955	≥12.0	≥1114	≥14.0	318-342	40-43	100
N45M	1330-1380	13.3-13.8	≥955	≥12.5	≥1114	≥14.0	342-366	43-46	100
N48M	1370-1430	13.7-14.3	≥955	≥12.5	≥1114	≥14.0	358-398	45-50	100
N50M	1390-1460	13.9-14.6	≥955	≥12.5	≥1035	≥13.0	374-414	47-52	100
N33H	1140-1170	11.4-11.7	≥835	≥10.5	≥1353	≥17.0	247-271	31.34	120,
N35H	1170-1220	11.7-12.2	≥868	≥10.9	≥1353	≥17.0	263-287	33-36	120
N38H	1220-1260	12.2-12.6	≥899	≥11.3	≥1353	≥17.0	287-310	36-39	120
N40H	1260-1290	12.6-12.9	≥923	≥11.6	≥1353	≥17.0	302-326	38-41	120
N42H	1290-1330	12.9-13.3	≥955	≥12.0	≥1353	≥17.0	318-342	40-43	120
N44H	1330-1370	13.3-13.7	≥955	≥12.5	≥1353	≥17.0	334-358	42-45	120
N46H	1340-1400	13.4-14.0	≥955	≥12.5	≥1273	≥16.0	334-382	43-48	120
N48H	1360-1420	13.6-14.2	≥955	≥12.5	≥1273	≥16.0	358-398	45-50	120
N50H	1390-1460	13.9-14.6	≥955	≥12.5	≥1273	≥16.0	374-406	47-51	120
N30SH	1080-1140	10.8-11.4	≥812	≥10.2	≥1592	≥20.0	223-247	28-31	150
N33SH	1140-1170	11.4-11.7	≥835	≥10.5	≥1592	≥20.0	247-271	31-34	150
N35SH	1170-1220	11.7-12.2	≥868	≥10.9	≥1592	≥20.0	263-287,	33-36	150
N38SH	1220-1260	12.2-12.6	≥899	≥11.3	≥1592	≥20.0	287-310	36-39	150
N40SH	1260-1290	12.6-12.9	≥923	≥11.6	≥1592	≥20.0	302-326	38-41	150
N42SH	1290-1320	12.9-13.2	≥955	≥12.0	≥1592	≥20.0	318-342	40-43	150
N45SH	1320-1380	13.2-13.8	≥987	≥12.4	≥1512	≥19	334-374	42-47	150
N30UH	1080-1140	10.8-11.4	≥812	≥10.2	≥1989	≥25.0	223-247	28-31	180
N33UH	1140-1170	11.4-11.7	≥835	≥10.5	≥1989	≥25.0	247-271	31-34	180
N35UH	1170-1220	11.7-12.2	≥868	≥10.9	≥1989	≥25.0	263-287	33-36	180
N38UH	1220-1260	12.2-12.6	≥899	≥11.3	≥1989	≥25.0	287-310	36-39	180
N40UH	1260-1320	12.6-13.2	≥955	≥12.0	≥1990	≥25	302-334	38-42	180
N28EH	1040-1080	10.4-10.8	≥780	≥9.8	≥2387	≥30.0	207-231	26-29	200
N30EH	1080-1140	10.8-11.4	≥812	≥10.2	≥2387 ,	≥30.0	223-247	28-31	200
N33EH	1140-1170	11.4-11.7	≥835	≥10.5	≥2387	≥30.0	247-271	31-34	200
N35EH	1170-1230	11.7-12.3	≥883	≥11.1	≥2388	≥30.0	263-295	33-37	200
N38EH	1220-1280	12.2-12.8	≥923	≥11.6	≥2388	≥30.0	287-318	36-40	200
N28AH	1050-1230	10.5-11.3	≥780	≥10.3	≥2786	≥35.0	207-247	26-31	220
N30AH	1090-1170	10.9-11.5	≥820	≥10.3	≥2786	≥35.0	223-263	28-33	220
N33AH	1130-1160	11.3-11.6	≥820	≥10.3	≥2786	≥35.0	247-271	31-34	220
