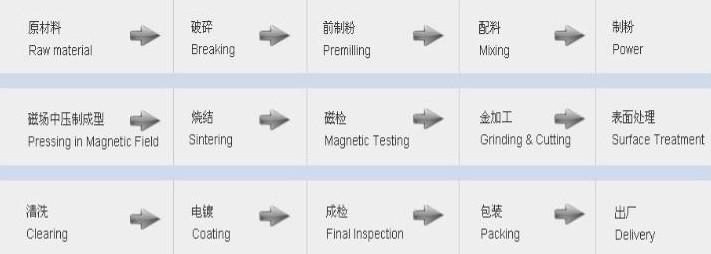

Production Chart for NdFeB magnet

PRODUCTION CHART FOR NDFEB MAGNET
牌号	剩磁		矫顽力		内禀矫顽力		最大磁能积		温度
Material	Remanence Br		Coercivity Hcb		Intrinsic Coercivity Hcj		Max.Energy Product		Max.Working Temp.
Code
TYPE	MT	(KGs)	kA/m	(KOe)	KA/m	(KOe)	KJ/m3	(MGOe)	°C(L/D=0.7)
N30	1090-1140	10.9-11.4	≥796	≥10	≥955	≥12	223-263	28-31	80
N33	1140-1170	11.4-11.7	≥836	≥10.5	≥955	≥12	247-287	31-33	80
N35	1170-1220	11.7-12.2	≥868	≥10.9	≥955	≥12.0	263-287	33-36	80
N38	1220-1260	12.2-12.6	≥899	≥11.3	≥955	≥12.0	287-310	36-39	80
N40	1260-1390	12.6-12.9	≥923	≥11.6	≥955	≥12.0	302-326	38-41	80
N42	1390-1330	12.9-13.3	≥923	≥11.6	≥955	≥12.0	318-342	40-43	80
N45	1330-1380	13.3-13.8	≥876	≥11.0	≥955	≥12.0	342-366	43-46	80
N48	1380-1420	13.8-14.2	≥876	≥11.0	≥955	≥12.0	366-390	46-49	80
N50	1390-1460	13.9-14.6	≥836	≥10.5	≥875	≥11.0	374-406	47-51	80
N52	1420-1470	14.2-14.7	≥836	≥10.5	≥875	≥11.0	390-422	49-53	80
N33M	1140-1170	11.4-11.7	≥835	≥10.5	≥1114	≥14.0	247-271	31-34	100
N35M	1170-1220	11.7-12.2	≥868	≥10.9	≥1114	≥14.0	263-287	33-36	100
N38M	1220-1260	12.2-12.6	≥899	≥11.3	≥1114	≥14.0	263-287	33-36	100
N40M	1260-1290	12.6-12.9	≥923	≥11.6	≥1114	≥14.0	302-326	38-41	100
N42M	1290-1330	12.9-13.3	≥955	≥12.0	≥1114	≥14.0	318-342	40-43	100
N45M	1330-1380	13.3-13.8	≥955	≥12.5	≥1114	≥14.0	342-366	43-46	100
N48M	1370-1430	13.7-14.3	≥955	≥12.5	≥1114	≥14.0	358-398	45-50	100
N50M	1390-1460	13.9-14.6	≥955	≥12.5	≥1035	≥13.0	374-414	47-52	100
N33H	1140-1170	11.4-11.7	≥835	≥10.5	≥1353	≥17.0	247-271	31.34	120
N35H	1170-1220	11.7-12.2	≥868	≥10.9	≥1353	≥17.0	263-287	33-36	120
N38H	1220-1260	12.2-12.6	≥899	≥11.3	≥1353	≥17.0	287-310	36-39	120
N40H	1260-1290	12.6-12.9	≥923	≥11.6	≥1353	≥17.0	302-326	38-41	120
N42H	1290-1330	12.9-13.3	≥955	≥12.0	≥1353	≥17.0	318-342	40-43	120
N44H	1330-1370	13.3-13.7	≥955	≥12.5	≥1353	≥17.0	334-358	42-45	120
N46H	1340-1400	13.4-14.0	≥955	≥12.5	≥1273	≥16.0	334-382	43-48	120
N48H	1360-1420	13.6-14.2	≥955	≥12.5	≥1273	≥16.0	358-398	45-50	120
N50H	1390-1460	13.9-14.6	≥955	≥12.5	≥1273	≥16.0	374-406	47-51	120
N30SH	1080-1140	10.8-11.4	≥812	≥10.2	≥1592	≥20.0	223-247	28-31	150
N33SH	1140-1170	11.4-11.7	≥835	≥10.5	≥1592	≥20.0	247-271	31-34	150
N35SH	1170-1220	11.7-12.2	≥868	≥10.9	≥1592	≥20.0	263-287	33-36	150
N38SH	1220-1260	12.2-12.6	≥899	≥11.3	≥1592	≥20.0	287-310	36-39	150
N40SH	1260-1290	12.6-12.9	≥923	≥11.6	≥1592	≥20.0	302-326	38-41	150
N42SH	1290-1320	12.9-13.2	≥955	≥12.0	≥1592	≥20.0	318-342	40-43	150
N45SH	1320-1380	13.2-13.8	≥987	≥12.4	≥1512	≥19	334-374	42-47	150
N30UH	1080-1140	10.8-11.4	≥812	≥10.2	≥1989	≥25.0	223-247	28-31	180
N33UH	1140-1170	11.4-11.7	≥835	≥10.5	≥1989	≥25.0	247-271	31-34	180
N35UH	1170-1220	11.7-12.2	≥868	≥10.9	≥1989	≥25.0	263-287	33-36	180
N38UH	1220-1260	12.2-12.6	≥899	≥11.3	≥1989	≥25.0	287-310	36-39	180
N40UH	1260-1320	12.6-13.2	≥955	≥12.0	≥1990	≥25	302-334	38-42	180
N28EH	1040-1080	10.4-10.8	≥780	≥9.8	≥2387	≥30.0	207-231	26-29	200
N30EH	1080-1140	10.8-11.4	≥812	≥10.2	≥2387	≥30.0	223-247	28-31	200
N33EH	1140-1170	11.4-11.7	≥835	≥10.5	≥2387	≥30.0	247-271	31-34	200
N35EH	1170-1230	11.7-12.3	≥883	≥11.1	≥2388	≥30.0	263-295	33-37	200
N38EH	1220-1280	12.2-12.8	≥923	≥11.6	≥2388	≥30.0	287-318	36-40	200
N28AH	1050-1230	10.5-11.3	≥780	≥10.3	≥2786	≥35.0	207-247	26-31	220
N30AH	1090-1170	10.9-11.5	≥820	≥10.3	≥2786	≥35.0	223-263	28-33	220
N33AH	1130-1160	11.3-11.6	≥820	≥10.3	≥2786	≥35.0	247-271	31-34	220
